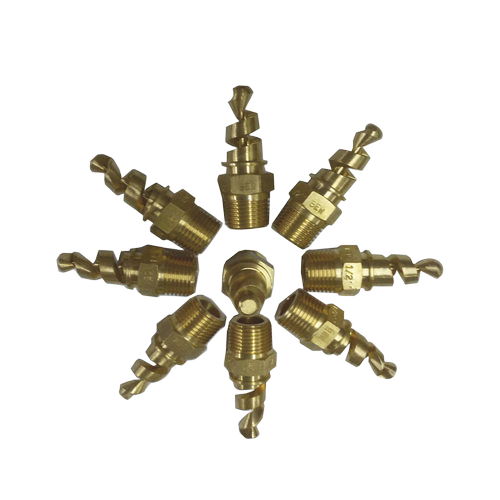

As fluid exits the spray hole, it is forced onto an outward spiral, which creates the sprayer from this brass spiral nozzle. Following the liquids shearing off of the helix, it fragments into droplets and creates the spray pattern. The spirals really produce concentric rings of numerous hollow cone spray patterns, which imitate a full cone design but with a less uniform liquid dispersion between the cones. When quenching, cleaning, protecting against fire, washing, or spraying liquids with particles, it is recommended to use this brass spiral nozzle.
Product Details:
Minimum Order Quantity | 100 Piece |
Brand | BRILLIANT |
Color | Natural Finish |
Size | As above |
With firm commitment to quality, we are engaged in manufacturingIndustrial Spiral Nozzle.
Specifications:
MALE | LPM/ | KG | APPROXIMATE | ||||||||
PIPE | k | 0.5 | 0.7 | 1 | 2 | 3 | 5 | 10 | 20 | DIMENSION (MM) | |
size | factor | KG | KG | KG | KG | KG | KG | KG | KG | HIEGHT | WIDTH |
1/2" | 75.00 | 53.00 | 62.90 | 75.20 | 106.00 | 130.00 | 168.00 | 238.00 | 336.00 | 64.00 | 22.22 |
1" | 153.00 | 108.00 | 128.00 | 153.00 | 216.00 | 264.00 | 341.00 | 483.00 | 683.00 | 92.00 | 35.00 |
1 1/2" | 294.00 | 208.00 | 246.00 | 294.00 | 416.00 | 509.00 | 657.00 | 930.00 | 1320.00 |
