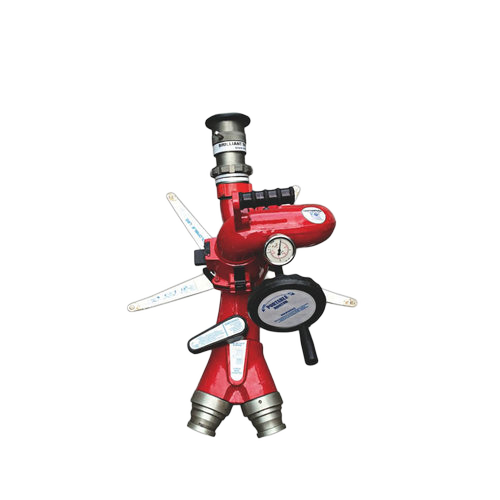

Portable Ground Water Monitor

Monitor

Portable Water Monitor 1000-2000 , LPM,7kg.cm2

Capacity (Flow rate)

1000 TO 2000 LPM @ 7 kg/cm2

Inlet connection

Double Inlet. 2 X 63 MM Male INST. With NRV . (Non return valve)

Vertical Rotation

Enclosed hand wheel driven worm gear.

30.0 degree to 90.0 degree

above

Horizontal Rotation

Above 180 degree . manual rotation

Stand

Foldable ground base with hardened steel spikes

Nozzle Flow

1000-2000 LPM@ 7kg cm2. Controlled with flow , Controlled Ring. Manually,

To automatically adjust change in Pressure and maintain throw.

Horizontal Throw @30??

45 MTR @ 7 kg.cm2

Vertical Throw

25 MTR. @ 7kg.cm2 .

Spray Angle

120 degree

Special Feature

Able to dismantle in two parts for easy Carrying

Material of construction

Swivel joints assy. upper elbow assembly , Nozzle, Barrel pipe hard anodized Alloy Aluminum parts hard anodized

Finish

Powder coating

Fire red powder coating all part inside and out side and water way for corrosion protection.
