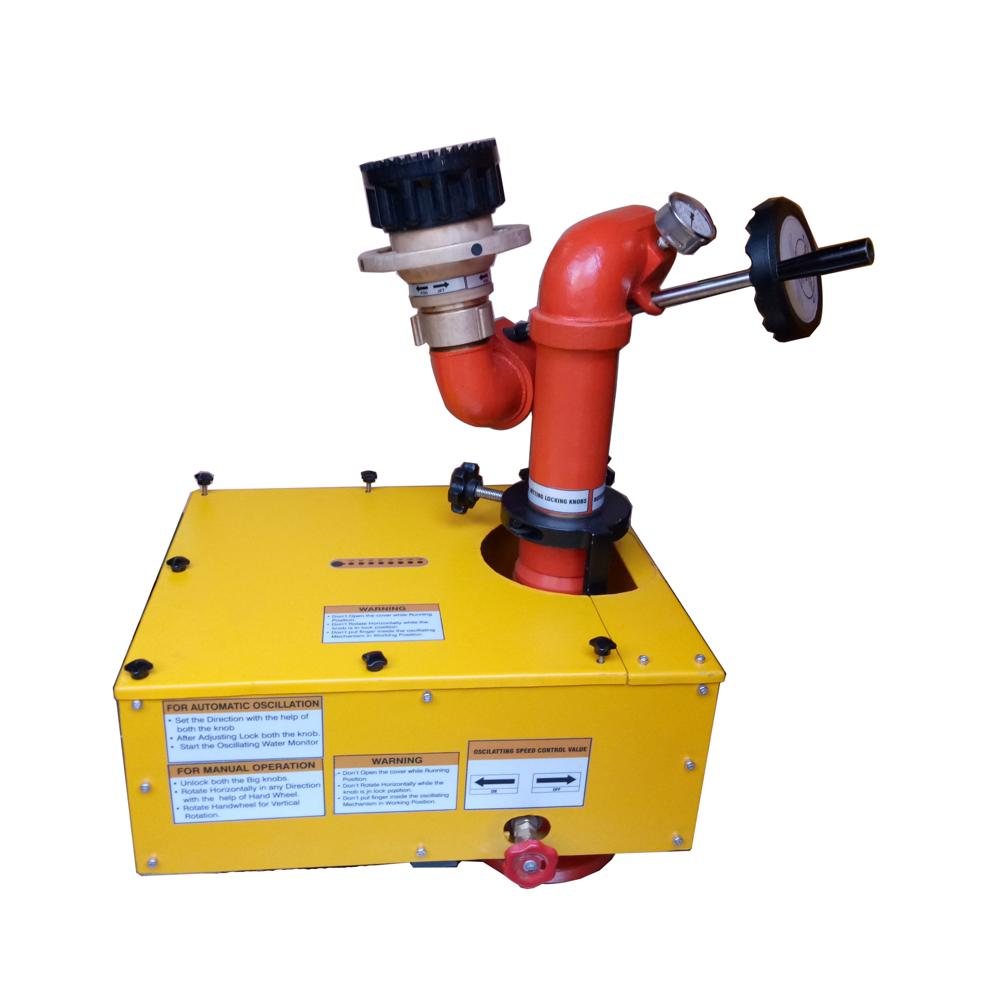

Self Oscillating Control Monitor

Product Description

Specifications:

• Working pressure: 0.8MPa(8 Bar)
• Rated flow rate: 2100Litre/min(567GPM)
• Water throw distance55m
• Max fog angle120
• Pitch angle: 20-70

Other Details:

• Self Oscillating Water Monitor # Stand Post Type, adapted to fit t4-inchnch flange (150#) and barrel size 3.
• Water powered, oscillating mechanism, made out of Stainless Steel.
• Monitor made out of SS 304, with inlet flange of 100 NB (4 inches).
• Gun Metal /SS swivel joints with locking arrangements.
• Permitting automatic adjustable ARC from 0-120 degree or more and manual 0-360 degree rotation, +80 to (-) 45-degree manual vertical movement.
• SS or Aluminum alloy Nozzle suitable for a discharge of 1000 GPM at 7 kg/cm2 pressure,
• Oscillating speed is adjustable.
• More than 50 M horizontal throw in still air.
• Monitor generally confirming to IS: 8442.
• The entire assembly shall be hydraulically tested to a pressure of 21 Kg/Cm2 for 5 minutes without any leakage. Certificate of hydro testing shall be provided along with the delivery of material.
• Monitors shall be painted with fire red color confirming to IS: 5 shade no. 536 and the paint shall confirm to IS: 2932.
